Z882-96C - Z882-C 8 foot HDPE Channel and Welded Frame Assy...
Free Shipping on Orders Over $400 - Excluding Neenah Products - Contiguous US Only
Manufacturer Zurn
Product ID Z882-96C

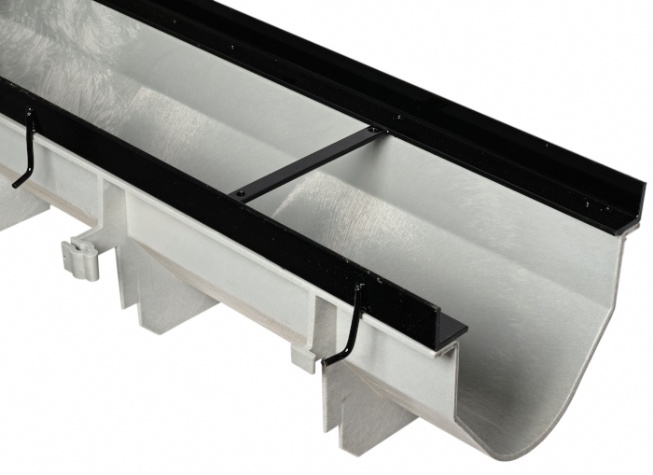

Z882-C 8 foot HDPE Channel and Welded Frame Assy

Discounts Apply !

Zurn Z882  - 12" Wide Reveal (9 1/4" Wide Throat)
8 Foot (96") Long Section
HDPE Channel and Welded Frame Assy

(Requires 4 each 24" grates to cover each Section)


ENGINEERING SPECIFICATION: Zurn Z882 Channels shall be 96 [2438] long, 12 [305] wide reveal and have a 9-1/4 [235] throat.

Modular channel sections shall be made of 0% water absorbent High Density Polyethylene (HDPE). Shall have a positive mechanical connection between channel sections that will not separate during the installation and shall mechanically lock into the concrete surround every 12 [305]. Channels shall weigh less than 5.05 lbs. [2.29kg] per linear foot, have a smooth, 3 [76] radiused self cleaning bottom with a Manning’s coefficient of 0.009 and 1.04% or neutral 0% built in slope.

Channels shall have rebar clips standard to secure trench in its final location. The 1/4 [6] thick Heavy-Duty Carbon Steel Frame Assembly conforms to ASTM specification A36 with 10 - 4 [102] long concrete anchors per 96 [2438]. Grate lockdown bars are to be integral to the frame. The frame is supplied with a powder coated finish. All welds must be performed by a certified welder per ASTM standard AWS D1.1. Frames.

Shall be produced in the U.S.A

"Linear Fall" Adds an internal pitch to the trench.
For longer runs of Linear Fall, flat channels may
be used to extend the run.
Reg Price: $1,111.00
Price: $1,100.00
