Pro Plus Trench Pic - Main

8" Josam Pro-Plus 200

CPS200 Complete kits from 10 to 99 feet

Innovative Material SMC/GRP
Strong / Lightweight / Stable

Available in Flat or Presloped

Click on "Configure" to Select Fall Option
  • Kit
     Price
    s
     10-99 Ft
  • Features
  • More
    Info
    rmation
  • Pic
    ture
    s
  • Spec
    ification

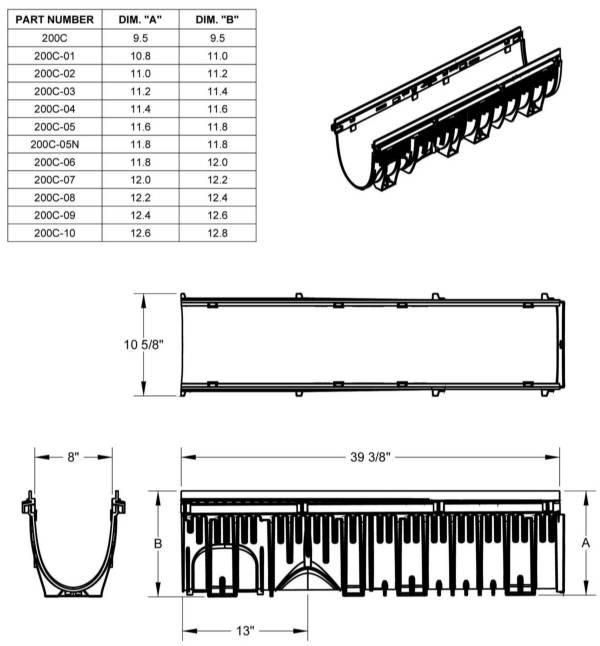

CPS200 Series - 8" Wide SMC/GRP Channel - Galv Mesh Pro-Snap Grates - End Caps - Bottom Outlet
Click on "Configure" For more Detail And Upgrade Options for each Length
Home
» 8" Josam Pro Plus 200 SMC-GRP Fiberglass Kits
Free Shipping on Orders Over $400 - Excluding Neenah Products - Contiguous US Only
Product ID CPS200-03
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 3 foot Complete

1 Meters = 3.3 feet

Price$649.00
Product ID CPS200-06
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 6 foot Complete

2 Meters = 6.6 feet

Price$1,109.00
Product ID CPS200-10
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 10 foot Complete

3 Meters = 9.85 feet

Price$1,569.00
Product ID CPS200-13
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 13 foot Complete

4 Meters = 13.1 feet

Price$2,029.00
Product ID CPS200-16
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 16 foot Complete

5 Meters = 16.4 feet

Price$2,489.00
Product ID CPS200-20
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 20 foot Complete

6 Meters = 19.7 feet

Price$2,949.00
Product ID CPS200-23
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 23 foot Complete

7 Meters = 22.9 feet

Price$3,409.00
Product ID CPS200-26
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 26 foot Complete

8 Meters = 26.2 feet

Price$3,869.00
Product ID CPS200-30
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 30 foot Complete

9 Meters = 29.5 feet

Price$4,329.00
Product ID CPS200-33
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 33 foot Complete

10 Meters = 32.8 feet

Price$4,789.00
Product ID CPS200-36
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 36 foot Complete

11 Meters = 36.1 feet

Price$5,249.00
Product ID CPS200-40
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 40 foot Complete

12 Meters = 39.4 feet

Price$5,709.00
Product ID CPS200-43
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 43 foot Complete

13 Meters = 42.6 feet

Price$6,169.00
Product ID CPS200-46
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 46 foot Complete

14 Meters = 45.9 feet

Price$6,629.00
Product ID CPS200-50
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 50 foot Complete

15 Meters = 49.2 feet

Price$7,089.00
Product ID CPS200-53
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 53 foot Complete

16 Meters = 52.5 feet

Price$7,549.00
Product ID CPS200-56
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 56 foot Complete

17 Meters = 55.7 feet

Price$8,009.00
Product ID CPS200-60
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 60 foot Complete

18 Meters = 58.9 feet

Price$8,469.00
Product ID CPS200-63
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 63 foot Complete

19 Meters = 62.1 feet

Price$8,929.00
Product ID CPS200-66
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 66 foot Complete

20 Meters = 65.3 feet

Price$9,389.00
Product ID CPS200-70
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 70 foot Complete

21 Meters = 68.9 feet

Price$9,849.00
Product ID CPS200-73
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 73 foot Complete

22 Meters = 71.7 feet

Price$10,309.00
Product ID CPS200-76
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 76 foot Complete

23 Meters = 74.9 feet

Price$10,769.00
Product ID CPS200-80
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 80 foot Complete

24 Meters = 78.8 feet

Price$11,229.00
Product ID CPS200-83
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 83 foot Complete

25 Meters = 81.3 feet

Price$11,689.00
Product ID CPS200-86
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 86 foot Complete

26 Meters = 84.5 feet

Price$12,149.00
Product ID CPS200-90
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 90 foot Complete

27 Meters = 88.6 feet

Price$12,609.00
Product ID CPS200-93
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 93 foot Complete

28 Meters = 91.8 feet

Price$13,069.00
Product ID CPS200-96
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 96 foot Complete

29 Meters = 95.1 feet

Price$13,529.00
Product ID CPS200-99
Manufacturer Josam Pro-Plus
8" Wide Glass Fiber Polyester Trench Drain Kit 99 foot Complete

30 Meters = 98.5 feet

Price$13,989.00

Pro-Plus System Features Heavy Duty Frame and Grate

  • Channel Body and edge made entirely in innovative SMC/GRB.
  • Innovative Pro-Snap Grate Securing System Simplifies installation and Maintenance.
  • Optimized channel shape ensures improved discharge rates even for low water levels and enhanced self-cleaning effect.
  • Large fins molded into the whole exterior of the channel ensure permanent anchorage in concrete.
  • Integrated Installation Brackets provides locating holes and securing screws for the re-bar supports.
  • Low cost - Easy to install
Josam Pro-Plus Installation Video

Features

Overview

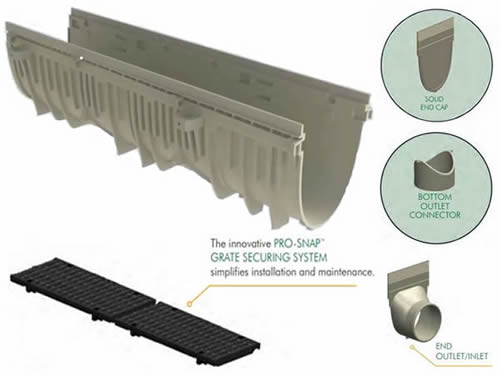

Pro Plus Trench Pic - Main

Complete system - Each Kit includes:

  • Specified number of 1 meter sections of trench drain
  • Specified number of galvanized mesh grates with "Pro-Snap" Locks
  • 1 - Bottom outlet connector
  • 2 - Solid End Caps
  • 1 - 6" End outlet.

Pro-Snap Grate Features

  • Innovative 4-point locking inside the channel body for a solid and secure fit, without any loose or rattling parts.
  • Protection against longitudinal displacement of grate covers
  • Long service life--has no moving parts or parts subject to wear.
  • No reduction of the discharge cross section, as the complete channel cross section remains unobstructed.
  • Simple and fast insertion and removal of grates with a single hand movement without the need for special tools.
  • Particularly smooth and quiet, thanks to the sound-absorbing securing system

Key advantages of the innovative material SMC/GRP:

  • Shatterproof and extremely resistant to abrasion
  • Frost, heat and rust-resistant
  • Lightweight
  • Non-porous structure with a smooth surface
  • Resistant to chemicals
  • Resistant to oil, gasoline, hot asphalt and tartaric acid
  • Non-flammable
  • Free of halogens, asbestos and toxic heavy metals
  • An excellent cost / performance material
  • Recyclable
Josam Pro-Plus Installation Video

Need more information? Contact Us Today!

More Information

MATERIAL MATERIAL MATERIAL !

Strong, shock and impact resistant, dimensionally stable

Josam's Pro-Plus range of new generation trench drains utilizes the benefits of space-age material. Pro-Plus is manufactured using glass-fiber reinforced polyester (GRP) pressed from sheet molding compound (SMC), which is a composite of polyester resin, mineral fillers and glass-fiber mats.

Extraordinarily robust and yet surprisingly light these diverse properties highlight the advantages of SMC/GRP over other trench drain materials. The material has revolutionized many industrial products and has become indispensable in today's world. Its applications are wide and varied: rotor blades for helicopters, bodywork for automobiles, yachts and aircraft. In fact, glass-fiber reinforced polyester made from SMC is used wherever extreme conditions prevail and special degrees of durability and rigidity are called for, precisely as in Josam's Pro-Plus drainage solutions.

SMC is a tried and tested GRP material and is a compelling choice because of its extremely high strength and dimensional stability. For example, SMC/GRP is more than 1.5 times stronger than polymer concrete. In addition, SMC/GRP?s thermal expansion on average is 40% less than that of polymer concrete. These SMC/GRP material characteristics result in extreme rigidity and only minimal longitudinal expansion, even for wide temperature fluctuations. In contrast to thermoplastic polymers, SMC/GRP cannot be reshaped and remains dimensionally stable once heated compression hardens the material into the final product.

This product is lighter, stronger and expands and contracts in extreme temperature ranges less than polymer concrete. In addition, SMC/GRP has greater compressive, flexural and tensile strength and less thermal expansion properties than either polypropylene or high density poly- ethylene. SMC/GRP is an innovative material and is clearly superior to all other trench channel materials.

Pictures

Pro Plus Material Key Advantages Pro-Plus Features, Benefits and Options Pro-Plus Component Breakdown
