Pro Plus 200 Individual Items

8" MEA-JOSAM Wide Pro-Plus 200

CPS200 Individual Items and Accessories

Innovative Material SMC/GRP
Strong / Lightweight / Stable

Configure as Individual Pieces or use with
CPS200 Kits or CPS200HD Kits

  • Individual
    Items
  • Features
  • More
    Info
    rmation
  • Pic
    ture
    s
  • Spec
    ification
CPS200 Series - 8" Wide SMC/GRP Individual Items
Best Seller - Order by 2 PM EDT and this best seller ships 5 PM same day.
Home » Manufacturers » Mea-Josam » Pro Plus 200 8" SMC-GRP By Item
 Checkout
Summer 2018 Promo - FREE SHIPPING on Orders Over $400
Product ID: 200C
Manufacturer: Mea-Josam

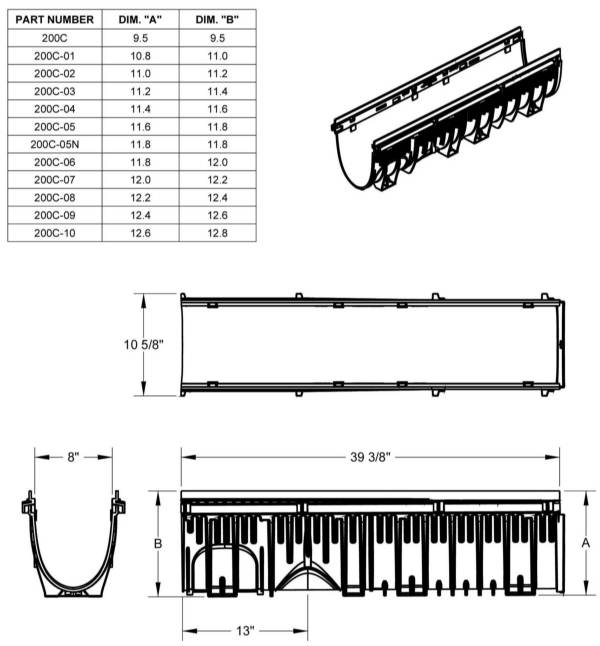

200-C 8" Wide SMC-GRP Trench Drain Channel

SMC/GRP 8" Channel

Reg Price: $202.00
Price: $210.00
Product ID: 200-C12
Manufacturer: Mea-Josam
200-C12 8" Wide SMC-GRP Trench Drain Channel 1/2 Meter

1/2 Meter Trench Drain Channel


Reg Price: $202.00
Price: $210.00
Product ID: 200C-DI
Manufacturer: Mea-Josam
152432 C Class DI-2000 Ductile Iron Overlay Rail

Half Meter
Up to Load Class E

Reg Price: $81.00
Price: $84.00
Product ID: 200-OE6
Manufacturer: Mea-Josam
200-OE6 Outlet End Cap

End Cap with 6" Outlet

Reg Price: $39.00
Price: $40.00
Product ID: 200-EC
Manufacturer: Mea-Josam
200-EC Solid End Cap

Solid End Cap

Reg Price: $39.00
Price: $40.00
Product ID: 200-OB6
Manufacturer: Mea-Josam
200-OB6 Bottom Outlet

6'' Bottom Outlet

Reg Price: $39.00
Price: $40.00
Product ID: 200-CT
Manufacturer: Mea-Josam
200-CT Corner T Connector

Corner / T Connector

Reg Price: $35.00
Price: $40.00
Product ID: 200-BS
Manufacturer: Mea-Josam
200-BS 8" Wide Channel Bracket Support

8" Bracket Support

Reg Price: $27.00
Price: $28.00
Product ID: 200-BSW
Manufacturer: Mea-Josam
200-BSW Outlet End Bracket Support

Outlet End Bracket Support

Reg Price: $27.00
Price: $28.00
Product ID: 200CXX-SB
Manufacturer: Mea-Josam
200CXX-SB Sloped Silt Box with Sediment Bucket One Meter

One Meter Sloped
Silt Box With Sediment Bucket


Reg Price: $594.00
Price: $621.00
Product ID: 200-SB
Manufacturer: Mea-Josam
200-SB Neutral Silt Box with Sediment Bucket Half Meter

1/2 Meter Neutral
Silt Box With Sediment Bucket


Reg Price: $594.00
Price: $621.00
Product ID: 200-RI
Manufacturer: Mea-Josam
200-RI Rebate Insert

200-RI Rebate Insert

Reg Price: $7.00
Price: $7.00
Product ID: 200-DBS
Manufacturer: Mea-Josam
200-DBS Dome Bottom Strainer

Dome Bottom Strainer

Reg Price: $43.00
Price: $47.00
Product ID: 200-BOS
Manufacturer: Mea-Josam
200-BOS Bottom Outlet Strainer

Bottom Outlet Strainer

Reg Price: $46.00
Price: $47.00
Product ID: 200-EC-BSCB
Manufacturer: Mea-Josam
200-EC-BSCB Special Endcap Allows 100 to 200 Flow

Special Endcap to Allow flow from
100 to 200 Channel



Reg Price: $27.00
Price: $50.00
Product ID: 200-BSCB
Manufacturer: Mea-Josam
200-BSCB Catch Basin Bracket

Catch Basin Bracket

Price: $66.00
Product ID: 200-BSC
Manufacturer: Mea-Josam
200-BSC Male to Male Channel Bracket Support

Make to Male
Channel Bracket Support

Reg Price: $27.00
Price: $28.00
Product ID: 200-SIO6
Manufacturer: Mea-Josam
200-SIO6 Side Outlet

6" Side Outlet

Price: $84.00
Product ID: 350030
Manufacturer: Mea-Josam
200-SBSB Silt Box Sediment Bucket Only

Mea-Josam Pro-Plus 200 Silt Box Sediment Bucket 350030

Price: $196.00
Product ID: 140254
Manufacturer: Mea-Josam
C Class Starfix Stainless Steel Mesh Trench Drain Grate

8" Wide
One Meter

Price: $1,074.00
Product ID: 140156
Manufacturer: Mea-Josam
A Class Starfix Galvanized Steel Mesh Trench Drain Grate

8" Wide
One Meter

Reg Price: $201.00
Price: $182.00
Product ID: 140158
Manufacturer: Mea-Josam
A Class Starfix Galvanized Steel Slotted HM Trench Drain Grate

8" Wide
Half Meter

Reg Price: $126.00
Price: $114.00
Product ID: 140164
Manufacturer: Mea-Josam
C Class Starfix Galvanized Reinforced Steel Mesh Trench Drain Grate

8" Wide
One Meter

Reg Price: $246.00
Price: $223.00
Product ID: 140166
Manufacturer: Mea-Josam
C Class Starfix Reinf Galvanized Steel Mesh HM Trench Drain Grate

8" Wide
Half Meter

Reg Price: $161.00
Price: $146.00
Product ID: 140168
Manufacturer: Mea-Josam
C Class Starfix Ductile Iron Slotted HM Trench Drain Grate

8" Wide
Half Meter

Reg Price: $138.00
Price: $125.00
Product ID: 140178
Manufacturer: Mea-Josam
D Class Starfix Ductile Iron Slotted HM Trench Drain Grate

8" Wide
Half Meter

Reg Price: $215.00
Price: $195.00
Product ID: 140182
Manufacturer: Mea-Josam
E Class Starfix Ductile Iron Slotted HM Trench Drain Grate

8" Wide
Half Meter

Reg Price: $253.00
Price: $230.00
Product ID: 153561A
Manufacturer: Mea-Josam
C Class Ductile Iron Slotted Profix Trench Drain Grate

8" Wide
Half Meter

Price: $124.00
Product ID: 153565A
Manufacturer: Mea-Josam
E Class Ductile Iron Mesh (Wave), Profix Lock

8.8" W X 19.7"L
E Class Wave

Reg Price: $224.00
Price: $203.00
Product ID: 153567A
Manufacturer: Mea-Josam
C Class Ductile Iron Solid Profix Trench Drain Grate

8" Wide
Half Meter

Price: $256.00
Product ID: 153549A
Manufacturer: Mea-Josam
E Class Ductile Iron Longitudinal ADA Profix Trench Drain Grate

8" Wide
Half Meter

Price: $220.00
Product ID: 154239A
Manufacturer: Mea-Josam
F Class Ductile Iron Slotted Profix Trench Drain Grate

8" Wide
Half Meter

Price: $218.00
Product ID: 140190-WS
Manufacturer: Mea-Josam
A Class Galvanized Steel Perforated Trench Drain Grate

8" Wide
One
Meter

Price: $275.00
Product ID: 140192-WS
Manufacturer: Mea-Josam
A Class Galvanized Steel Perforated Trench Drain Grate 1/2 Meter

8" Wide
1/2 Meter

Price: $150.00

Pro-Plus System Features

  • Channel Body and edge made entirely in innovative SMC/GRB.
  • Innovative STARFIX Grate Securing System Simplifies installation and Maintenance.
  • Optimized channel shape ensures improved discharge rates even for low water levels and enhanced self-cleaning effect.
  • Large fins molded into the whole exterior of the channel ensure permanent anchorage in concrete.
  • Installation Brackets connects channels together and provides locating holes and securing screws for the re-bar supports.
  • Low cost - Easy to install

Features

Pro-Plus System Features

  • Channel Body and edge made entirely in innovatice SMC/GRP.
  • Innovative STARFIX Grate Securing System Simplifies installation and Maintenence.
  • Optimized channel shape ensures improved discharge rates even for low water levels and enhanced self-cleaning effect.
  • Large fins molded into the whole exterior of the channel ensure permanent anchorage in concrete.
  • Installation Brackets connects channels together and provides locating holes and securing screws for the re-bar supports.
  • Low cost - Easy to install

STARFIX Grate Features

  • Innovative 4-point locking inside the channel body for a solid and secure fit, without any loose or rattling parts.
  • Protection against longitudinal displacement of grate covers
  • Long service life--has no moving parts or parts subject to wear.
  • No reduction of the discharge cross section, as the complete channel cross section remains unobstructed.
  • Simple and fast insertion and removal of grates with a single hand movement without the need for special tools.
  • Particularly smooth and quiet, thanks to the sound-absorbing securing system

Complete Kits from 10 to 99 Ft Available

For
CPS200 Standard
Pro Plus 200 Trench Drain

Click here to got to the "CPS200 Kit" Page


For
CPS200HD Heavy Duty Frame and Grate Kits
Pro Plus 200 Trench Drain

Click here to got to the "CPS200HD Kit" Page



Need more information? Contact Us Today!

More Information

MATERIAL MATERIAL MATERIAL !

Strong, shock and impact resistant, dimensionally stable

MEA-JOSAM's Pro-Plus range of new generation trench drains utilizes the benefits of space-age material. Pro-Plus is manufactured using glass-fiber reinforced polyester (GRP) pressed from sheet molding compound (SMC), which is a composite of polyester resin, mineral fillers and glass-fiber mats.

Extraordinarily robust and yet surprisingly light these diverse properties highlight the advantages of SMC/GRP over other trench drain materials. The material has revolutionized many industrial products and has become indispensable in today's world. Its applications are wide and varied: rotor blades for helicopters, bodywork for automobiles, yachts and aircraft. In fact, glass-fiber reinforced polyester made from SMC is used wherever extreme conditions prevail and special degrees of durability and rigidity are called for, precisely as in MEA-JOSAM's Pro-Plus drainage solutions.

SMC is a tried and tested GRP material and is a compelling choice because of its extremely high strength and dimensional stability. For example, SMC/GRP is more than 1.5 times stronger than polymer concrete. In addition, SMC/GRP?s thermal expansion on average is 40% less than that of polymer concrete. These SMC/GRP material characteristics result in extreme rigidity and only minimal longitudinal expansion, even for wide temperature fluctuations. In contrast to thermoplastic polymers, SMC/GRP cannot be reshaped and remains dimensionally stable once heated compression hardens the material into the final product.

This product is lighter, stronger and expands and contracts in extreme temperature ranges less than polymer concrete. In addition, SMC/GRP has greater compressive, flexural and tensile strength and less thermal expansion properties than either polypropylene or high density poly- ethylene. SMC/GRP is an innovative material and is clearly superior to all other trench channel materials.

Pictures

Pro Plus 100 trench drain channel breakdown Pro Plus 100 Trench Silt Box Breakdown STARFIX Trench Drain Grate Illustration Load Class Illustration

Specification


CPS200 - Pro Plus 200 -  Specification

View Individual Item Page

Complete Submittal Packages:

CPS200 A Complete Submittal Package.pdf

  Includes the Following Submittals: Channels, Endcaps, Grates, Brackets -  View CPS200 Kits


CPS200 A HD Complete Submittal Package.pdf

  Includes the Following Submittals: Channels, Endcaps, Grates, Brackets -  View CPS200HD Kits





CPS200 Grate Option Submittals

CPS200 Grate 140156 Galv Mesh A.pdf
CPS200 Grate 140158 Galv Mesh A Half.pdf
CPS200 Grate 140164 Galv Mesh C.pdf
CPS200 Grate 140166 Galv Mesh C Half.pdf
CPS200 Grate 140168 DI Slotted C.pdf
CPS200 Grate 140178 DI Slotted D.pdf
CPS200 Grate 140182 DI Slotted E.pdf
CPS200 Grate 140254 Stainless Slotted C.pdf
CPS200 Grate 140256 Stainless Slotted C Half.pdf
CPS200 Grate 152050 Vinylester Bar A.pdf
CPS200 Grate HD 152549A DI Slotted E Half.pdf
CPS200 Grate HD 153561A DI Slotted C Half.pdf
CPS200 Grate HD 153565A DI Wave E Half.pdf
CPS200 Grate HD 153567A DI Solid Cover D Half.pdf
CPS200 Grate HD 154239A DI Slotted F Half.pdf

Siltbox and Catch Basin Submittals:

CPS200 CB Catch Basin 20 X 24 Box Only.pdf
CPS200 CB-DI Catch Basin 20 X 24 DI Rail.pdf
CPS200 CB-FAT Catch Basin 20 X 24 w Foul Air Trap.pdf
CPS200 CB-OUT Catch Basin Outlet.pdf
CPS200 CB-SED Catch Basin Sediment Bucket.pdf
CPS200 BSCB Catch Basin Bracket.pdf

CPS200 Accessory Submittals:

CPS200 BOS Bottom Outlet Strainer.pdf
CPS200 BS Installation Bracket.pdf
CPS200 BSC Male to Male Connector.pdf
CPS200 BS-S Installation Bracket Set.pdf
CPS200 BSW End Bracket.pdf
CPS200 C12-F Half Male to Male Flat.pdf
CPS200 CT Corner Connector.pdf
CPS200 DI Frame 152432.pdf
CPS200 EC-BSCB Special 100 To 200 End Cap.pdf
CPS200 RI Rebate Insert.pdf
CPS200 SB Siltbox Both.pdf
CPS200 SIO6 Side Outlet.pdf

CPS200 Kit Component Submittals:

CPS200 A Cover Sheet.pdf
CPS200 A HD Cover Sheet.pdf
CPS200 C Channel Both.pdf
CPS200 C Channel HD.pdf
CPS200 C Channel Sloped.pdf
CPS200 EC Solid End Cap.pdf
CPS200 End Cap Set.pdf
CPS200 OB4 Bottom Outlet.pdf
CPS200 OB6 Bottom Outlet.pdf
CPS200 OE6 Outlet End Cap.pdf
