EN1000 Trench Installed Example

4" Wide EN1000

Polymer Concrete
with Ductile Iron Edge

Complete kits from 10 to 99 feet

Heavy Duty Load Demands
Ductile Iron Edge to Provide Uniform Appearance

  • Kit
     Price
    s
     10-99 Ft
  • Features
  • More
    Info
    rmation
  • Pic
    ture
    s
  • Spec
    ification
    s
CPS604 Series - 4" Wide Polymer Concrete Channel w/Ductile Iron Edge - DI Profix Grates - Endcaps
Click on "Configure" For more Detail And Upgrade Options for each Length
Home » Commercial » Commercial 4" Wide » EN1000 Polymer Concrete - Ductile Iron Edge Complete Kits
 Checkout
Summer 2018 Promo - FREE SHIPPING on Orders Over $400
Product ID: CPS604-03
Manufacturer: Mea-Josam
4" Wide 3 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

1 Meters = 3.3 feet

Reg Price: $404.00
Price: $339.00
Product ID: CPS604-06
Manufacturer: Mea-Josam
4" Wide 6 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

2 Meters = 6.6 feet

Reg Price: $690.00
Price: $589.00
Product ID: CPS604-10
Manufacturer: Mea-Josam

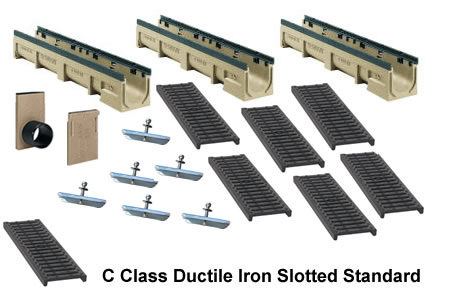

4" Wide 10 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

3 Meters = 9.85 feet

Reg Price: $976.00
Price: $839.00
Product ID: CPS604-13
Manufacturer: Mea-Josam
4" Wide 13 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

4 Meters = 13.1 feet

Reg Price: $1,262.00
Price: $1,089.00
Product ID: CPS604-16
Manufacturer: Mea-Josam
4" Wide 16 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

5 Meters = 16.4 feet

Reg Price: $1,548.00
Price: $1,329.00
Product ID: CPS604-20
Manufacturer: Mea-Josam
4" Wide 20 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

6 Meters = 19.7 feet

Reg Price: $1,834.00
Price: $1,579.00
Product ID: CPS604-23
Manufacturer: Mea-Josam
4" Wide 23 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

7 Meters = 22.9 feet

Reg Price: $2,120.00
Price: $1,829.00
Product ID: CPS604-26
Manufacturer: Mea-Josam
4" Wide 26 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

8 Meters = 26.2 feet

Reg Price: $2,406.00
Price: $2,069.00
Product ID: CPS604-30
Manufacturer: Mea-Josam
4" Wide 30 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

9 Meters = 29.5 feet

Reg Price: $2,692.00
Price: $2,319.00
Product ID: CPS604-33
Manufacturer: Mea-Josam
4" Wide 33 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

10 Meters = 32.8 feet

Reg Price: $2,978.00
Price: $2,559.00
Product ID: CPS604-36
Manufacturer: Mea-Josam
4" Wide 36 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

11 Meters = 36.1 feet

Reg Price: $3,264.00
Price: $2,809.00
Product ID: CPS604-40
Manufacturer: Mea-Josam
4" Wide 40 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

12 Meters = 39.4 feet

Reg Price: $3,550.00
Price: $3,059.00
Product ID: CPS604-43
Manufacturer: Mea-Josam
4" Wide 43 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

13 Meters = 42.6 feet

Reg Price: $3,836.00
Price: $3,299.00
Product ID: CPS604-46
Manufacturer: Mea-Josam
4" Wide 46 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

14 Meters = 45.9 feet

Reg Price: $4,122.00
Price: $3,539.00
Product ID: CPS604-50
Manufacturer: Mea-Josam
4" Wide 50 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

15 Meters = 49.2 feet

Reg Price: $4,408.00
Price: $3,779.00
Product ID: CPS604-53
Manufacturer: Mea-Josam
4" Wide 53 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

16 Meters = 52.5 feet

Reg Price: $4,694.00
Price: $4,019.00
Product ID: CPS604-56
Manufacturer: Mea-Josam
4" Wide 56 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

17 Meters = 55.7 feet

Reg Price: $4,980.00
Price: $4,259.00
Product ID: CPS604-60
Manufacturer: Mea-Josam
4" Wide 60 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

18 Meters = 58.9 feet

Reg Price: $5,266.00
Price: $4,499.00
Product ID: CPS604-63
Manufacturer: Mea-Josam
4" Wide 63 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

19 Meters = 62.1 feet

Reg Price: $5,552.00
Price: $4,739.00
Product ID: CPS604-66
Manufacturer: Mea-Josam
4" Wide 66 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

20 Meters = 65.3 feet

Reg Price: $5,838.00
Price: $4,979.00
Product ID: CPS604-70
Manufacturer: Mea-Josam
4" Wide 70 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

21 Meters = 68.9 feet

Reg Price: $6,124.00
Price: $5,219.00
Product ID: CPS604-73
Manufacturer: Mea-Josam
4" Wide 73 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

22 Meters = 71.7 feet

Reg Price: $6,410.00
Price: $5,459.00
Product ID: CPS604-76
Manufacturer: Mea-Josam
4" Wide 76 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

23 Meters = 74.9 feet

Reg Price: $6,696.00
Price: $5,699.00
Product ID: CPS604-80
Manufacturer: Mea-Josam
4" Wide 80 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

24 Meters = 78.8 feet

Reg Price: $6,982.00
Price: $5,939.00
Product ID: CPS604-83
Manufacturer: Mea-Josam
4" Wide 83 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

25 Meters = 81.3 feet

Reg Price: $7,268.00
Price: $6,179.00
Product ID: CPS604-86
Manufacturer: Mea-Josam
4" Wide 86 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

26 Meters = 84.5 feet

Reg Price: $7,554.00
Price: $6,419.00
Product ID: CPS604-90
Manufacturer: Mea-Josam
4" Wide 90 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

27 Meters = 88.6 feet

Reg Price: $7,840.00
Price: $6,659.00
Product ID: CPS604-93
Manufacturer: Mea-Josam
4" Wide 93 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

28 Meters = 91.8 feet

Reg Price: $8,126.00
Price: $6,899.00
Product ID: CPS604-96
Manufacturer: Mea-Josam
4" Wide 96 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

29 Meters = 95.1 feet

Reg Price: $8,412.00
Price: $7,139.00
Product ID: CPS604-99
Manufacturer: Mea-Josam
4" Wide 99 Foot Kit EN1000 Polymer Concrete - Integrated Ductile Iron Edge - Complete

30 Meters = 98.5 feet

Reg Price: $8,698.00
Price: $7,379.00
Cost Effective and Proven.

Key advantages Meadrain Polymer Concrete Trench Drain:

  • Quick, simple and straightforward to install
  • Shallow installation depth requires less time spent on excavation
  • Channel sections have a low net weight
  • Interlocking Joint System enables a uniform fit of the channel joints
  • Installation direction and channel numbers are clearly marked
  • High Heat resistance
  • Non-porous capillary free structure
  • High resistance to abrasion
  • For use with extreme loads

Features

Overview

EN1500 Kit

Complete system - Each Kit includes:

  • Specified number of 1 meter sections of concrete trench drain
  • Specified number of  grates
  • All grate hardware included
  • 1 - Solid End Caps
  • 1 - 4" End outlet .


Cost Effective and Proven.

Key advantages Meadrain Polymer Concrete Trench Drain:

  • Quick, simple and straightforward to install
  • Shallow installation depth requires less time spent on excavation
  • Channel sections have a low net weight
  • Interlocking Joint System enables a uniform fit of the channel joints
  • Installation direction and channel numbers are clearly marked
  • High Heat resistance
  • Non-porous capillary free structure
  • High resistance to abrasion
  • For use with extreme loads
Need more information? Contact Us Today!


 Click here for 6" Wide Concrete Trench Drain

Click here for 8" Wide Concrete Trench Drain

Click here for 4" SMC-GRP Glass Fiber Polyester Trench Drain in Flat or Presloped

MEADRAIN POLYMER CONCRETE:
"a system proves itself"




Edge Options

Meadrain Polymer Concrete Trench Drain Edge Options:

Polymer edge
Polymer concrete edge to match surrounding concrete deck.

Galvanized edge
 Integral Galvanized protected edge provides clean uniform edge to finish.

Ductile Iron
Integral Cast Iron protected edge designed to withstand extreme loads

Stainless Steel Edge
Integral Stainless Steel edge offers sanitary surface that is easy to clean.


Need more information? Contact Us Today!

MEADRAIN POLYMER CONCRETE:
"a system proves itself"

More Information

Grate Options

A Class Galvanized Slotted
Galvanized Slotted Grate
The most common grates and our standard on our trench drain kits. Hot dipped galvanized steel provides a quality look as well as high durability


Trench Grate Upgrades:

B Class Galvanized Mesh
Mesh Galvanized Grate
 B Class to withstand 12.5 Tons. Mesh galvanized trench drain grates are a great alternative for your project

C Class Reinforced Galvanized Slotted
Galvanized Slotted Grate
C Class reinforced Grates provide a 25 ton rating for heavier vehicles.  Hot dipped galvanized steel provides a quality look as well as high durability

C Class Ductile Iron Slotted
Ductile Iron Grate
Ductile Iron  Cast Iron grates are able to withstand the heaviest loads and offer excellent integration in concrete and asphalt surfaces.


Stainless Steel Grates
Stainless Steel grates offer sanitary surface that is easy to clean.
Click here to go to stainless

We also offer longitudinal slotted ADA compliant grates, Perforated Grates, Solid grate covers, Vinylester bar Grates, as well as several other options.  Contact Us today for a project quote.

MEADRAIN POLYMER CONCRETE:
"a system proves itself"

Pictures


Fall Options

No Fall - Flat

The straight channel section is used where no fall is required or where natural fall suffices.  In general, installation of no fall trench drain is easier and is used in the majority of applications.

No Fall Trench Drain Illustration

Clear Width: 10.0 cm / 4.0 in. Length: 50.0 cm / 19.7 in.
Total Height: 15.0 cm / 5.9 in.; 17.5 cm / 6.9 in.; 20.0 cm / 7.9 in.;
22.5 cm / 8.9 in.; 25.0 cm / 9.8 in.



Linear Fall - Presloped

The integrated Linear fall with a constant gradient of .05% ensures a positive discharge. This presloped trench drain is used in specialty situations or where engineering specification require.

Linear Fall Trench Drain Illustration
Clear Width: 10.0 cm / 4.0 in. Total Height: 15.0 cm / 5.9 in. up to 30.5 cm / 12 in.
Total Width: 15.5 cm / 6.1 in.  Integrated Linear Fall: 0.5% / with constant depth

  Contact Us today.

MEADRAIN POLYMER CONCRETE:
"a system proves itself"


Profix Lock System


For use with MEADRAIN Trench Drain Only

Non bolted grating securement for heavy-load zones.

The MEADRAIN PROFIX grating securement system offers many advantages for specifiers,
planners and civil engineering professionals

Features:
  • Quick, cost effective installation and removal of grating.
  • Bidirectional installation of grating.
  • Inserted trench drain grating, once pressed into position, remains firmly locked in place.
  • Able to be opened using conventional tools.
  • Long service life as the locking mechanism lies below the load and soiling level.
  • Vandal resistant as the securing mechanism is concealed on the underside of the grating.
  • Optimized grate free area
  • Special anti-overshoot feature for water.

Profix Trench Drain Grate Installation Example

Simple installation of gratings into the MEADRAIN Heavy Load Channel

  • Insert Grating into channel body
  • Step on grating to snap in the PROFIX
  • Two fold stainless spring steel bars per grating provide secure locking

Profix Trench Grate Removal Demo

Rapid Removal of cast iron gratings

  • Using conventional tools, simply apply at joint between gratings and lift up
  • Remove Grating



MEADRAIN PROFIX:
"Simple functionality - extremely safe"
