12" Wide Polycast Fiberglass
FP1200 Series By Item
For High Volume Flow Situations
All Grates Exceed Loading Criteria for Roadways
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- Overview
- Features
- More Information
- Pictures
- Specification
Overview

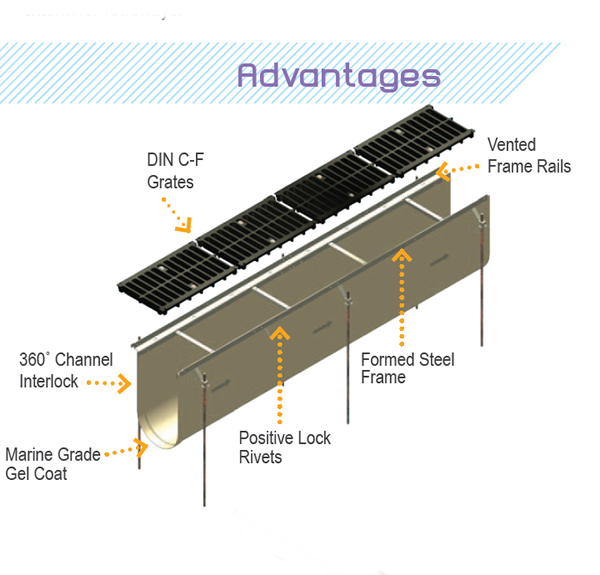

Key advantages of the Polycast FP1200 Series Fiberglass Trench Drain:
- 8 foot Channels and 360 Degree Interlock for up to 20% Faster Assembly.
- 120 Foot of 1% continuous slope available.
- Fiberglass walls are up to 80% thicker than the competition.
- Grates have inlet flow of up to 80% more than the competition.
- Unique grate design means no sacrifice of flow capabilities for additional strength.
- Flow rates of up to 6700 gallons per minute for FP1200 are possible.
- Positive lock rivets attach channel to frame and will not pull out.
- Direction arrows and channel numbers ensure correct installation.
- Marine grade gel coat provides UV stability and excellent wetted surface features.
- Vented Frame rails prevents air entrapment which can cause weakening of the slab and premature Failure.
Available in 96" and 48" Sections.
Polycast FP1200 High Capacity Fiberglass Trench Drain
The Polycast FP1200 Series Fiberglass Trench Drain are the ideal solution for high volume flow situations such as airports, roadways and seaports. Designed with the installer in mind, this revolutionary design incorporates full 360 degree interlocks and prefabricated turns and tess to minimize installation time
The FP1200 polycast fiberglass trench drain comes in 4' and 8' lengths for maximum flexibility. Maximum flow capacity of 6700 GPM can be achieved over 120' of continuous 1% slope. Grates are available to meet DIN load classes C through F. Three separate grate options are available for each size that exceed FAA AC 150/5320 loading criteria for airports and all grates meet or exceed AASHTO M-306 Loading Criteria for Roadways
More Information
Trench Drain Supply has provided a quick and easy method to quote and order this
12" Wide FP1200 series Trench Drain.

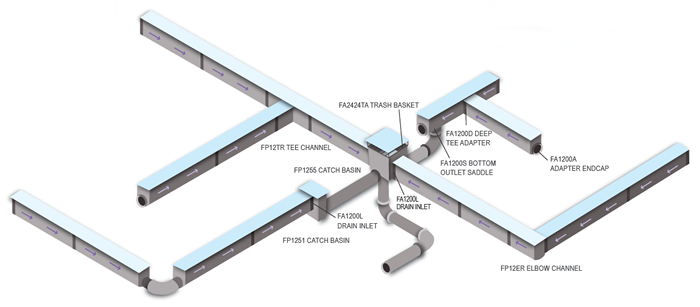

We have created assemblies for the key components of the system. These assemblies are:
FP1200EX - Complete 96" Channel Assembly
FP1200HEX - Complete 48" Assembly
FP1251 - Complete 12 X 24 Catch Basin Assembly
FP1255 - Complete 24 X 24 Catch Basin Assembly
Each of these assemblies include the Channel, Frame, and Standard C Class Grates.
Grate Upgrades are also available for each up to F Class Grates.
