Mea-Josam Pro Plus 200 Trench Drain
Cutaway View of 12" wide channel drain

12" Wide Pro-Plus 300
Quality Trench Drain System

Complete kits from 10 to 99 feet

Innovative Material SMC/GRP
Strong / Lightweight / Stable


  • Kit Prices 10-50 Ft
  • Features
  • More Information
  • Pictures
  • Specification
  • Individual Items

CPS300 Series - 12" Wide SMC - GRP Channel - Ductile Iron C Class Grates - Endcaps - Bottom outlet

Click on "Configure" For more Detail And Upgrade Options for each Length

Home » Commercial Trench Drain Systems » 12'' Wide Trench » 12" Wide Pro Plus 300 Trench Drain Kits 10 ft to 99 ft

 Checkout
The following discounts apply to all these products.
Fall Discount on Orders Over $400.00 - Order Today!!

ID
Name
Description
Price
12" Wide Glass Fiber Polyester Trench Drain Kit 3 foot Complete

1 Meters = 3.3 feet

$869.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 6 foot Complete

2 Meters = 6.6 feet

$1,449.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 10 foot Complete

3 Meters = 9.85 feet

$1,999.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 13 foot Complete

4 Meters = 13.1 feet

$2,569.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 16 foot Complete

5 Meters = 16.4 feet

$3,129.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 20 foot Complete

6 Meters = 19.7 feet

$3,689.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 23 foot Complete

7 Meters = 22.9 feet

$4,259.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 26 foot Complete

8 Meters = 26.2 feet

$4,829.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 30 foot Complete

9 Meters = 29.5 feet

$5,399.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 33 foot Complete

10 Meters = 32.8 feet

$5,979.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 36 foot Complete

11 Meters = 36.1 feet

$6,559.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 40 foot Complete

12 Meters = 39.4 feet

$7,139.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 43 foot Complete

13 Meters = 42.6 feet

$7,719.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 46 foot Complete

14 Meters = 45.9 feet

$8,299.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 50 foot Complete

15 Meters = 49.2 feet

$8,879.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 53 foot Complete

16 Meters = 52.5 feet

$9,459.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 56 foot Complete

17 Meters = 55.7 feet

$10,039.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 60 foot Complete

18 Meters = 58.9 feet

$10,619.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 63 foot Complete

19 Meters = 62.1 feet

$11,199.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 66 foot Complete

20 Meters = 65.3 feet

$11,779.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 70 foot Complete

21 Meters = 68.9 feet

$12,359.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 73 foot Complete

22 Meters = 71.7 feet

$12,939.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 76 foot Complete

23 Meters = 74.9 feet

$13,519.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 80 foot Complete

24 Meters = 78.8 feet

$14,099.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 83 foot Complete

25 Meters = 81.3 feet

$14,679.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 86 foot Complete

26 Meters = 84.5 feet

$15,259.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 90 foot Complete

27 Meters = 88.6 feet

$15,839.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 93 foot Complete

28 Meters = 91.8 feet

$16,419.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 96 foot Complete

29 Meters = 95.1 feet

$16,999.00
Configure
12" Wide Glass Fiber Polyester Trench Drain Kit 99 foot Complete

30 Meters = 98.5 feet

$17,579.00
Configure


Pro-Plus System Features
Climate change and exceptional rainfall events mean that collecting
and draining water from surfaces becomes an absolute necessity.

This 12" wide trench drain provides maximum drainage capability,
offering durable strength for major hydraulic works and environmental protection.



Complete system - Each 12" wide
Trench Drain Kit
includes:
  • Specified number of 1 meter sections of 12" trench drain
  • Specified number of 25 Ton Ductile Iron Wave grates with "Starfix" Locks
  • 1 - Bottom outlet connector
  • 2 - Solid End Caps
  • 1 - 8" End outlet.

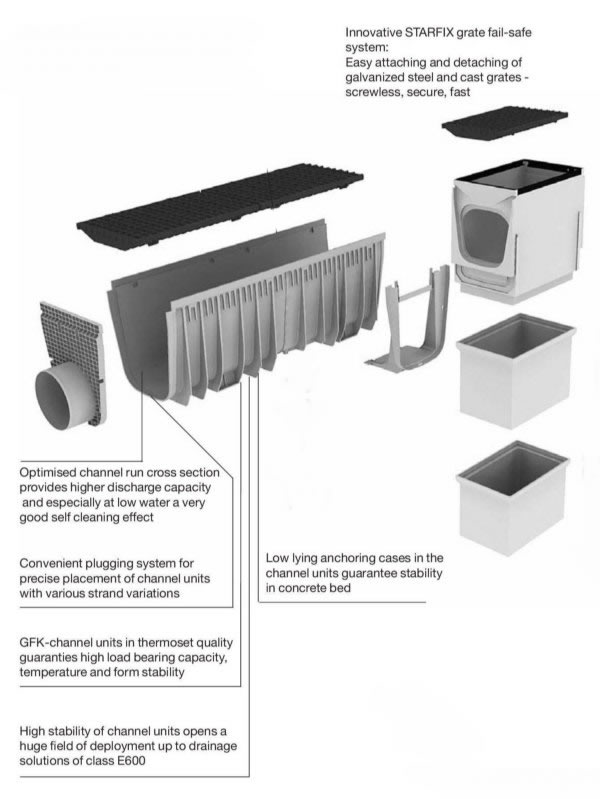

Cutaway View of 12" wide channel drain

Key advantages of the innovative material SMC/GRP:

  • Shatterproof and extremely resistant to abrasion
  • Frost, heat and rust-resistant
  • Lightweight
  • Non-porous structure with a smooth surface
  • Resistant to chemicals
  • Resistant to oil, gasoline, hot asphalt and tartaric acid
  • Non-flammable
  • Free of halogens, asbestos and toxic heavy metals
  • An excellent cost / performance material
  • Recyclable

An innovative Material - SMC -  These quality trench drain channels are manufactured using Sheet Moulding Compound (SMC), a resin-glass fiber composite. The principal qualities of this material are:

  • High Mechanical and impact strength.
  • Outstanding Chemical Resistance
  • Toleration of temperature variations. (Stable in frost and and at more than 100° C)
  • Light weight provides optimum conditions for site installation.
STARFIX Grate Features
  • Innovative 4-point locking inside the channel body for a solid and secure fit, without any loose or rattling parts.
  • Protection against longitudinal displacement of grate covers
  • Long service life--has no moving parts or parts subject to wear.
  • No reduction of the discharge cross section, as the complete channel cross section remains unobstructed.
  • Simple and fast insertion and removal of grates with a single hand movement without the need for special tools.
  • Particularly smooth and quiet, thanks to the sound-absorbing securing system

More Information

MATERIAL MATERIAL MATERIAL !

Strong, shock and impact resistant, dimensionally stable


MEA-JOSAM's Pro-Plus range of new generation trench drains utilizes the benefits of space-age material. Pro-Plus is manufactured using glass-fiber reinforced polyester (GRP) pressed from sheet molding compound (SMC), which is a composite of polyester resin, mineral fillers and glass-fiber mats.

Extraordinarily robust and yet surprisingly light these diverse properties highlight the advantages of SMC/GRP over other trench drain materials. The material has revolutionized many industrial products and has become indispensable in today's world. Its applications are wide and varied: rotor blades for helicopters, bodywork for automobiles, yachts and aircraft. In fact, glass-fiber reinforced polyester made from SMC is used wherever extreme conditions prevail and special degrees of durability and rigidity are called for, precisely as in MEA-JOSAM's Pro-Plus drainage solutions.

SMC is a tried and tested GRP material and is a compelling choice because of its extremely high strength and dimensional stability. For example, SMC/GRP is more than 1.5 times stronger than polymer concrete. In addition, SMC/GRP?s thermal expansion on average is 40% less than that of polymer concrete. These SMC/GRP material characteristics result in extreme rigidity and only minimal longitudinal expansion, even for wide temperature fluctuations. In contrast to thermoplastic polymers, SMC/GRP cannot be reshaped and remains dimensionally stable once heated compression hardens the material into the final product.

This product is lighter, stronger and expands and contracts in extreme temperature ranges less than polymer concrete. In addition, SMC/GRP has greater compressive, flexural and tensile strength and less thermal expansion properties than either polypropylene or high density poly- ethylene. SMC/GRP is an innovative material and is clearly superior to all other trench channel materials.




Pictures

12" wide channel drain with all parts
STARFIX Trench Drain Grate Illustration
Load Class Illustration


CPS300 Series Specification Sheets - Mea Pro Plus 300 12" Wide

View CPS300 Individual Item Page           View CPS300 Complete Kits Page

Complete Submittal Packages:

CPS300 Complete Submittals Standard Kit.pdf
  Includes the Following Submittals: Channels, Endcaps, Grates, Brackets

Starfix Grate Option Submittals
CPS300 Grate 140444.pdf - C Class 1 Meter Galv Reinforced Mesh Grate
CPS300 Grate 140446.pdf - C Class 1/2 Meter Galv Reinforced Mesh Grate
CPS300 Grate 140448.pdf - C Class 1/2 Meter Ductile Iron Wave Grate
CPS300 Grate 140450.pdf - D Class 1/2 Meter Ductile Iron Wave Grate
CPS300 Grate 140452.pdf - E Class 1/2 Meter Ductile Iron Wave Grate
CPS300 Grate 140454.pdf - E Class 1/2 Meter Ductile Iron Solid Cover

Siltbox and Catch Basin Submittals:
CPS300_SB_Siltbox_C10.pdf
CPS300_SB_Siltbox_Flat.pdf

CPS300 Accessory Submittals:
CPS300_BOS_Bottom_Outlet_Strainer.pdf
CPS300_BS_Installation_Bracket.pdf
CPS300_BSC_Male_to_Male_Connector.pdf
CPS300_CT_Corner_Connector.pdf
CPS300_DI_Frame_152433.pdf

CPS300 Kit Component Submittals:
CPS300_C_Channel.pdf
CPS300_C_Channel_HD.pdf
CPS200 EC Solid End Cap.pdf
CPS300_OB8_Bottom_Outlet.pdf
CPS300_OE8_ Outlet_End_Cap.pdf



Specification

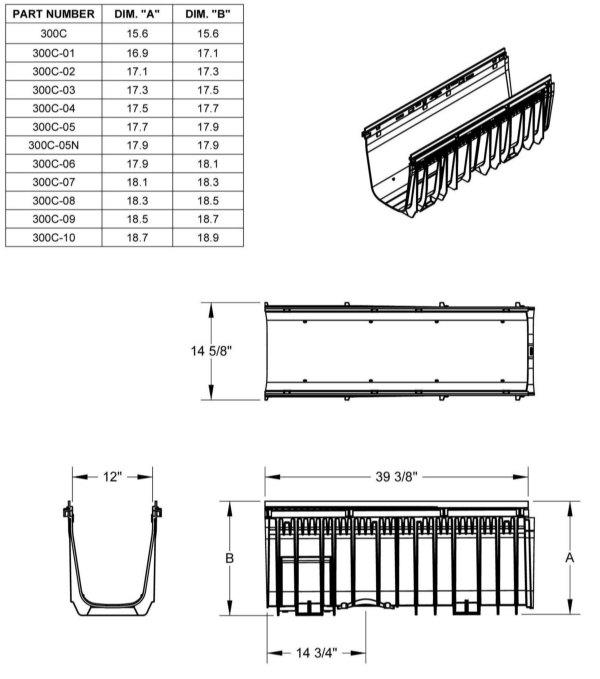

Specifications foe Mes Josam Pro Plus 300 12" Wide Trench Drain

Grating

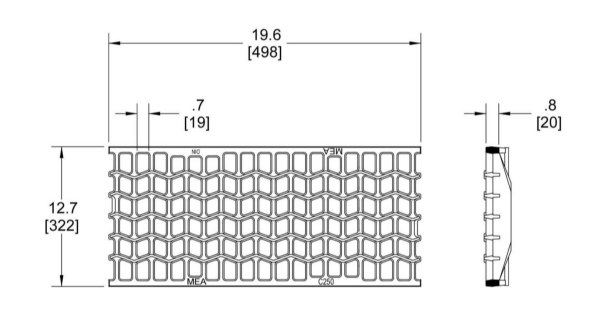

Ductile Iron Trench Drain Grate 140448 Specification Sheet

CPS300 and CPS300HD by Item

Pro Plus 300 Trench Drain

Click here to got to the "By Item" Page
